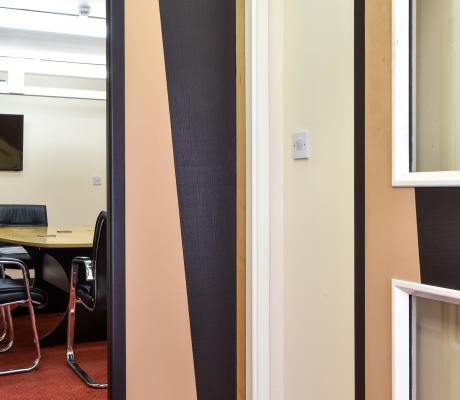

Door frames and architraves, especially at low level, can be exposed to breaking and splintering; becoming unsightly and dangerous as well as causing crevices which may attract dirt and bacteria.

Avoiding such damage can be achieved by fitting a Yeoman Shield Frame/Architrave protector resulting in a hygienic and easy to clean finish.

A range of systems to suit all configurations are available.

Dimensions

Post-formed protectors are manufactured to suit existing timber frames/dimensions and are supplied to requested sizes, in lengths up to 2.4 m. Please advise of dimensions required at enquiry/order stage.

Extruded protectors are 2.0 mm thick and are available from stock in the following internal sizes:

Architrave:

Square/Radius 15 x 45 x 15 mm

Radius/Radius 18 x 45 x 18 mm

Square/Splayed 18 x 25 x 20 x 15 mm

Stop Lath:

Softwood FD30 (1/2Hr) 18 x 45 x 18 mm

Hardwood FD60 (1Hr) 25 x 45 x 25 mm

These are supplied in lengths up to 2.3 m, with or without solid timber inserts.

The Universal Frame Protector is manufactured with a 65 x 65 mm leg** and a 20 mm formed corner, supplied in lengths up to 2.4 m.

**Standard leg length, smaller options available on request.





N.B. The extruded split frame protector is only available in a smooth finish in White or Graphite Grey

View Dimensions, Composition and Finish

Watch our Video

Installation Guide

Download your Installation Guide for this product below:

Colours available in this range

Raspberry Red

RAL 3027 (nearest)
LRV: 12
NCS: 2070-R

Tangerine

RAL 2012 (nearest)
LRV: 33
NCS: 1060-Y70R

Primrose

BS 10 C 33 (nearest)
LRV: 73
NCS: 0530-Y10R

Pale Green

BS14 C 31 (nearest)
LRV: 70
NCS: 1010-G40Y

Sage Green

BS 14 C 35 (nearest)
LRV: 39
NCS: 3010-G10Y

Mocha

BS 08 B 21 (nearest)
LRV: 24
NCS: 5005-Y50R

Graphite

RAL 7046 (nearest)
LRV: 21
NCS: 5502-B

Lavender

BS 22 B 17
LRV: 39
NCS: 3010-R60B

Heather

LRV: 23
NCS: 3040-R70B

Aubergine

BS 24 C 39 (nearest)
LRV: 7
NCS: 6030-R50B

Amethyst

RAL 4012 (nearest)
LRV: 17
NCS: 3065-R70B

Royal Blue

RAL 5017
LRV: 11
NCS: 3065-R90B

Trafalgar Blue

RAL 5000
LRV: 11
NCS: 6020-R80B

Red

BS 04 E 53
LRV: 15
NCS: 1580-Y80R

Powder Blue

BS 20 C 33
LRV: 55
NCS: 1515-R90B

Terracotta

LRV: 10
NCS: 4050-Y90R

Yellow

BS 08 E 51
LRV: 51
NCS: 1070-Y10R

Pastel Blue*

RAL 5024
LRV: 20
NCS: 4030-B

Orange

LRV: 14
NCS: 3060-Y80R

Grapefruit

BS 10 E 50
LRV: 72
NCS: 0550-G90Y

Regatta Blue

BS 18 E 53
LRV: 15
NCS: 3060-B

Buff*

RAL 1001
LRV: 36
NCS: 3020-Y30R

Pastel Green

RAL 6019
LRV: 49
NCS: 1030-G30Y

Dark Blue

RAL 5002
LRV: 8
NCS: 4055-R70B

Avocado

LRV: 33
NCS: 4010-Y10R

Green

BS 14 E 53
LRV: 17
NCS: 3060-G

Light Green*

RAL 6027
LRV: 43
NCS: 2030-B60G

Opal Green*

RAL 6004
LRV: 8
NCS: 7020-B70G

Steel Blue*

RAL 5011
LRV: 6
NCS: 7020-R80B

Mushroom

BS 08 B 17
LRV: 51
NCS: 2010-Y40R

Pink Rose

BS 04 E 49
LRV: 71
NCS: 0515-Y90R

Cream

BS 10 B 15
LRV: 79
NCS: 0804-Y10R

Lilac

RAL 4001
LRV: 19
NCS: 4030-R40B

White*

RAL 9016
LRV: 86
NCS: 0500-N

Blush

LRV: 16
NCS: 5020-R

Light Grey

BS 00 A 01
LRV: 57
NCS: 2000-N

Aqua Blue

RAL 5018
LRV: 26
NCS: 3040-B40G

Bordeaux

RAL 4004
LRV: 7
NCS: 5040-R20B

Mid Grey*

BS 00 A 05
LRV: 37
NCS: 3502-B

Sky Blue

LRV: 60
NCS: 1020-B10G

Brown

BS 08 B 29
LRV: 7
NCS: 8005-Y80R

Dusty Grey*

RAL 7037
LRV: 26
NCS: 5000-N

Pigeon Blue

BS 18 C 35
LRV: 45
NCS: 202-B10G

Burgundy

RAL 3003
LRV: 9
NCS: 3560-Y90R

Dark Grey

RAL 7015
LRV: 12
NCS: 7005-R80B

Black*

BS 00 E 53
LRV: 4
NCS: 9000-N
