Door edges (both meeting and hinged) can come under the hammer in busy thoroughfares.
Continuous pushing open of doors with trolleys, equipment and even feet can cause severe damage to the existing door edges.
This damage can result in there being a gap between the meeting edges or the edges and frame which is over the 3 mm recommend by the RRO and therefore leading to non-compliance of the fire door.

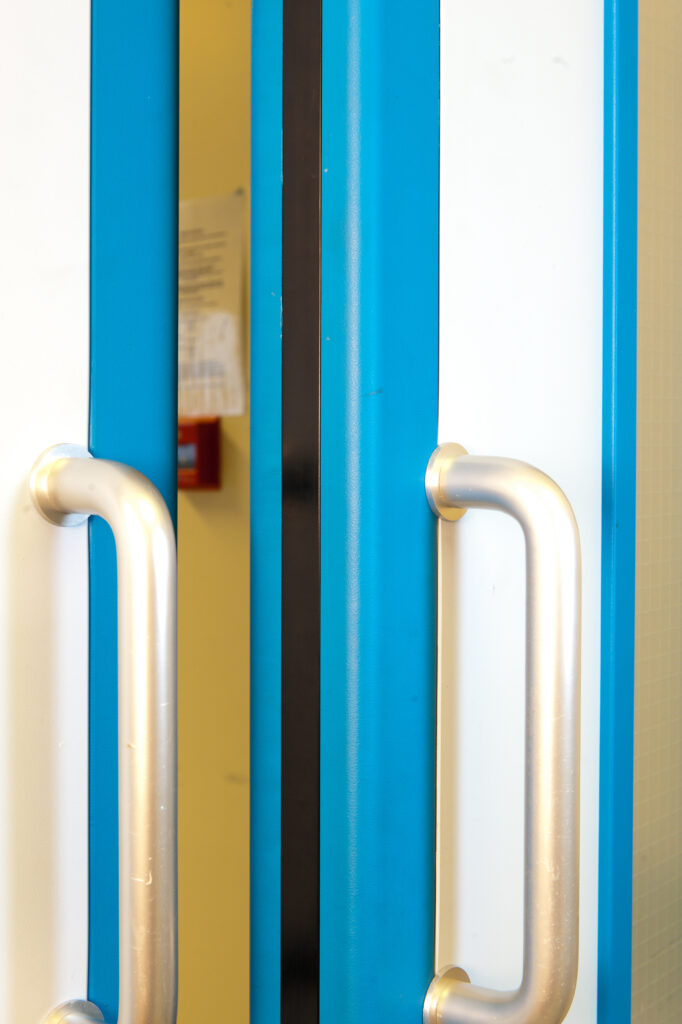

Yeoman Shield’s Door Edge Protectors, with their toughened 9 mm PVCu inner core, are the perfect product range to install on the door edges to help protect and prolong the life of a door.
Door Edge Protectors may also be fitted without seals to non-fire doors, where protection or aesthetics are the only consideration.
Fire Seals available:
Fire Seal (plain intumescent)
Fire & Smoke Seal (Brush intumescent)
Profiles:
Radius
Square Edge
Double Swing
Fire Rating:
30FR (1/2 hour)
60FR (1 hour)
View Dimensions, Composition and Finish
Manufactured to door size required – please state when enquiring N.B. we recommend an overlap of 50 mm
2.0 mm standard thickness, 2.5 mm available on request
Vinylac outer, 9 mm toughened PVCu inner core
Fire seal insert
2.0 mm thick FalmouthEx
2.0 mm thick HessianEx
Raspberry Red
RAL 3027 (nearest)
LRV: 12
NCS: 2070-R
Tangerine
RAL 2012 (nearest)
LRV: 33
NCS: 1060-Y70R
Primrose
BS 10 C 33 (nearest)
LRV: 73
NCS: 0530-Y10R
Pale Green
BS14 C 31 (nearest)
LRV: 70
NCS: 1010-G40Y
Sage Green
BS 14 C 35 (nearest)
LRV: 39
NCS: 3010-G10Y
Mocha
BS 08 B 21 (nearest)
LRV: 24
NCS: 5005-Y50R
Graphite
RAL 7046 (nearest)
LRV: 21
NCS: 5502-B
Lavender
BS 22 B 17
LRV: 39
NCS: 3010-R60B
Heather
LRV: 23
NCS: 3040-R70B
Aubergine
BS 24 C 39 (nearest)
LRV: 7
NCS: 6030-R50B
Amethyst
RAL 4012 (nearest)
LRV: 17
NCS: 3065-R70B
Royal Blue
RAL 5017
LRV: 11
NCS: 3065-R90B
Trafalgar Blue
RAL 5000
LRV: 11
NCS: 6020-R80B
Red
BS 04 E 53
LRV: 15
NCS: 1580-Y80R
Powder Blue
BS 20 C 33
LRV: 55
NCS: 1515-R90B
Terracotta
LRV: 10
NCS: 4050-Y90R
Yellow
BS 08 E 51
LRV: 51
NCS: 1070-Y10R
Pastel Blue*
RAL 5024
LRV: 20
NCS: 4030-B
Orange
LRV: 14
NCS: 3060-Y80R
Grapefruit
BS 10 E 50
LRV: 72
NCS: 0550-G90Y
Regatta Blue
BS 18 E 53
LRV: 15
NCS: 3060-B
Buff*
RAL 1001
LRV: 36
NCS: 3020-Y30R
Pastel Green
RAL 6019
LRV: 49
NCS: 1030-G30Y
Dark Blue
RAL 5002
LRV: 8
NCS: 4055-R70B
Avocado
LRV: 33
NCS: 4010-Y10R
Green
BS 14 E 53
LRV: 17
NCS: 3060-G
Light Green*
RAL 6027
LRV: 43
NCS: 2030-B60G
Opal Green*
RAL 6004
LRV: 8
NCS: 7020-B70G
Steel Blue*
RAL 5011
LRV: 6
NCS: 7020-R80B
Mushroom
BS 08 B 17
LRV: 51
NCS: 2010-Y40R
Pink Rose
BS 04 E 49
LRV: 71
NCS: 0515-Y90R
Cream
BS 10 B 15
LRV: 79
NCS: 0804-Y10R
Lilac
RAL 4001
LRV: 19
NCS: 4030-R40B
White*
RAL 9016
LRV: 86
NCS: 0500-N
Blush
LRV: 16
NCS: 5020-R
Light Grey
BS 00 A 01
LRV: 57
NCS: 2000-N
Aqua Blue
RAL 5018
LRV: 26
NCS: 3040-B40G
Bordeaux
RAL 4004
LRV: 7
NCS: 5040-R20B
Mid Grey*
BS 00 A 05
LRV: 37
NCS: 3502-B
Sky Blue
LRV: 60
NCS: 1020-B10G
Brown
BS 08 B 29
LRV: 7
NCS: 8005-Y80R
Dusty Grey*
RAL 7037
LRV: 26
NCS: 5000-N
Pigeon Blue
BS 18 C 35
LRV: 45
NCS: 202-B10G
Burgundy
RAL 3003
LRV: 9
NCS: 3560-Y90R
Dark Grey
RAL 7015
LRV: 12
NCS: 7005-R80B
Black*
BS 00 E 53
LRV: 4
NCS: 9000-N
