Standard
75 x 75 mm, 50 x 50 mm, 38 x 38 mm (stippled)
3 mm thick
1.25 m, 2.5 m lengths
Trims
65 x 65 mm, 50 x 50 mm, 38 x 38 mm, 25 x 25 mm (smooth limited colours)
2 mm thick
3.5 m
80 x 80 mm (smooth available in White & Graphite only)
2 mm thick
3.5 m
Extruded PVCu
Stippled
Smooth – Limited colours

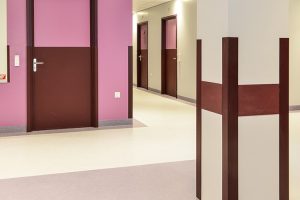

Simple yet very effective, corner protection angles preserve wall corners from harm which can be caused by everyday traffic within industrious buildings.
Available in different sizes and angles to cover most corner configurations and quick and easy to fit, with the option of being supplied with double-sided adhesive tape already attached.
Corner Trims are a neat way of tidying up corner edges on walls and are more suitable for areas such as offices, meeting rooms and rest areas where the footfall is not as busy as corridors, etc.
Yeoman Shield Corner Protection Angles and Trims are available in both a stippled and smooth finish but please note that smooth finish is only available in limited colours; please contact our sales office for more information or use the form below.
To view the fitting instructions please click here
Yeoman Shield Fire Test Information
Textured Extruded Protection Products – B, s2, d0
BS EN 13823: 2010 + A1: 2014.
BS EN ISO 11925 – 2: 2010.
BS EN 13501 – 1: 2007 + A1: 2009.
BS 476: Part 7: 1997 – The surface spread of flame products – Class 1Y (Class 1 is the best classification in this test).
BS 476: Part 6: 1989 + A1: 2009 – Fire propagation for products – Class O – As defined in the latest building regulations, approved document B (Fire Safety).
Smooth Extruded Frame Protection Products
CFR1101041 Rev 1 & CFR1002181 Rev 2
BS EN 1634-1: 2008 (1 Hr)
BS EN 1634-1: 2008 (1/2 Hr)
