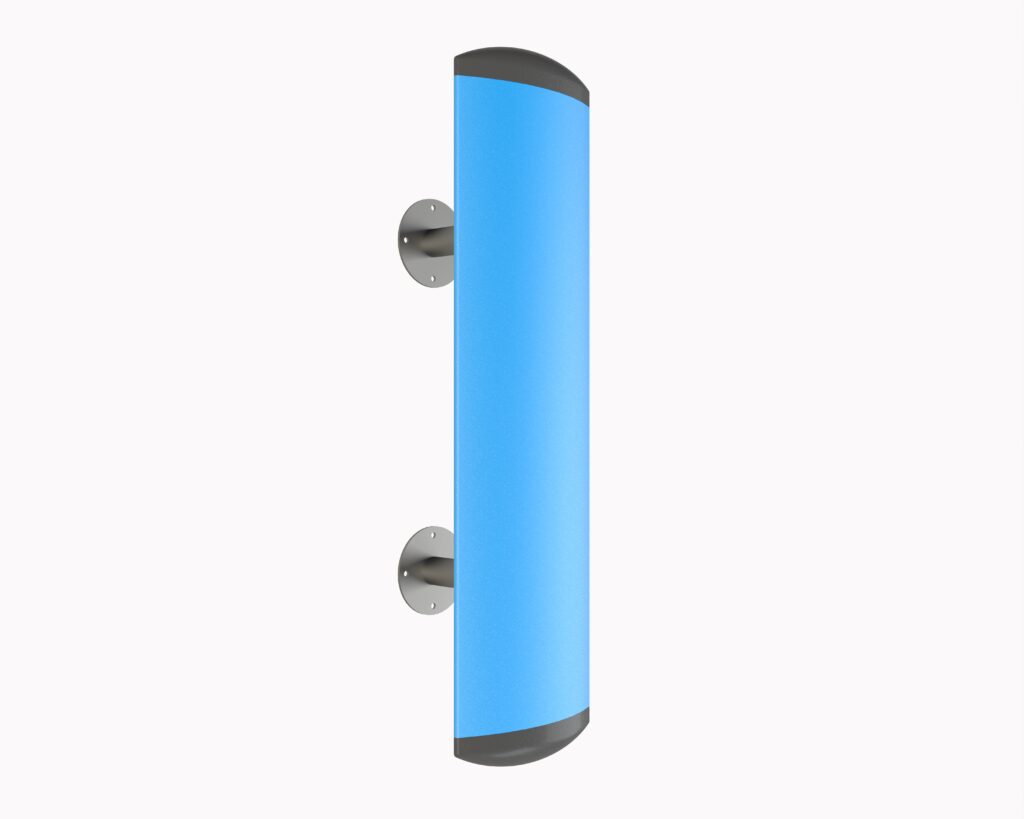

  • Ellipse on dumbbells on ali core white background JPEG

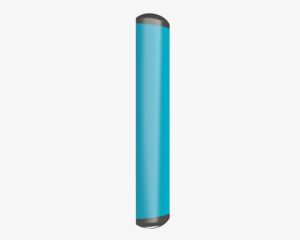

  • Ellipse flat back to wall on ali core white background JPEG

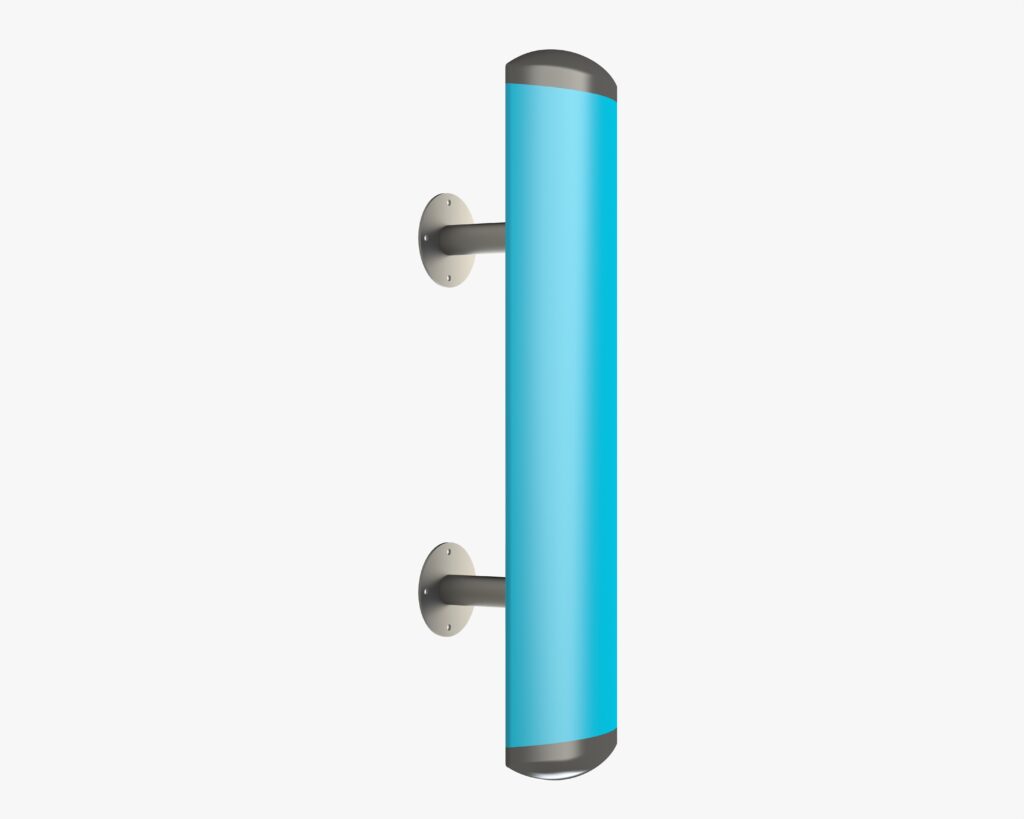

  • Ellipse on dumbbell brackets on ali core white background JPEG
  • Ellipse on dumbbells on ali core white background JPEG
  • Ellipse flat back to wall on ali core white background JPEG
  • Ellipse on dumbbell brackets on ali core white background JPEG

Ellipse Bed Head Protector

  • Fire Rated - Please see further details below
  • Protects wall at head of beds
  • Fitted vertical in pairs
  • Mounted flat to the walls or on spacers
  • Steel dumbell or standard spacers available
  • Choice of colours
  • Low VOC Product

The Yeoman Shield Ellipse Bed Head Protectors are the latest addition to our comprehensive range of wall protection solutions, specifically developed for healthcare environments.

Designed to shield walls from damage caused by beds and medical equipment, the protectors are installed vertically in pairs and can be fitted directly to the wall or mounted on spacers to accommodate and safeguard medical services.

Manufactured from durable extruded PVCu, the protectors feature a robust, easy-to-clean stippled surface and are available in a wide selection of colours to complement interior design schemes.

Width: 200mm
Length: 750mm, 900mm, 1200mm
Projection on spacers 60mm on standard spacers, 150mm on Dumbbell brackets

On-Trend Range

Premier Colour Range

Ancillary Colour Range

Bed head & accessories – extruded PVCu cover over aluminium core
Accessories – Injection moulded ABS
Dumbell Brackets – Powder coated steel
Standard spacers – PVCu

Stippled

Yeoman Shield bed head protectors save the bed, wall and medical gas equipment from harm.

The Ellipse Bed Head Protectors are the latest addition to our comprehensive range of wall protection solutions, specifically developed for healthcare environments.

Designed to shield walls from damage caused by beds and medical equipment, the protectors are installed vertically in pairs and can be fitted directly to the wall or mounted on spacers to accommodate and safeguard medical services.

Manufactured from durable extruded PVCu, the protectors feature a robust, easy-to-clean stippled surface and are available in a wide selection of colours to complement interior design schemes.




Yeoman Shield Fire Test Information

Textured Extruded Protection Products – B, s2, d0

BS EN 13823: 2010 + A1: 2014.

BS EN ISO 11925 – 2: 2010.

BS EN 13501 – 1: 2007  + A1: 2009.

BS 476: Part 7: 1997 – The surface spread of flame products – Class 1Y (Class 1 is the best classification in this test).

BS 476: Part 6: 1989 + A1: 2009 – Fire propagation for products – Class O – As defined in the latest building regulations, approved document B (Fire Safety).
