Ultra 60 Rail

  • Fire Tested - Please see further details below
  • Accentuated angled design
  • 60 mm projection
  • Choice of solid or Vinylac core
  • External corners & stop ends
  • Internal corners comprise 2no. stop ends
  • Fit flat back to walls or on 60 mm Cream PVCu spacers

90 mm deep

60 mm projection

3.5 m lengths

Standard 48 colours

Extruded PVCu rail & accessories
Fixing/jointing clips are fabricated

Stippled finish

With a useful 60 mm projection, the Ultra 60 rail from Yeoman Shield takes the full force of impact via its 3-way impact reaction before an offending object can even get close to the wall.

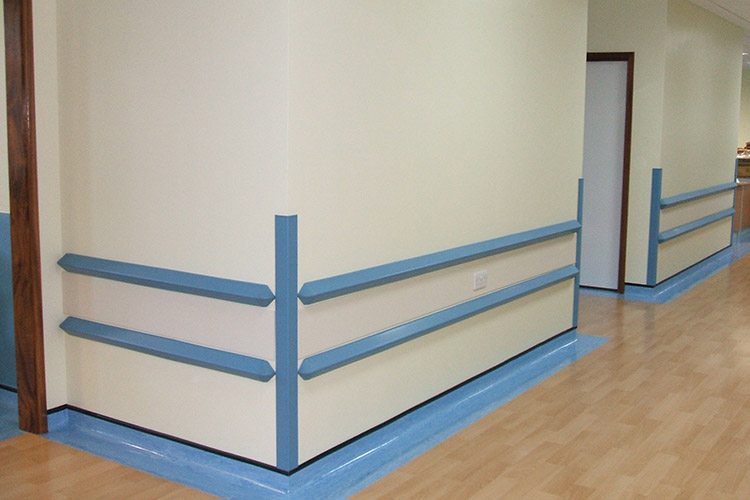

With its accentuated angled shape, the Ultra 60 rail is a superb option for a low-level wall guard.


Yeoman Shield Fire Test Information

Textured Extruded Protection Products – B, s2, d0

BS EN 13823: 2010 + A1: 2014.

BS EN ISO 11925 – 2: 2010.

BS EN 13501 – 1: 2007  + A1: 2009.

BS 476: Part 7: 1997 – The surface spread of flame products – Class 1Y (Class 1 is the best classification in this test).

BS 476: Part 6: 1989 + A1: 2009 – Fire propagation for products – Class O – As defined in the latest building regulations, approved document B (Fire Safety).

Installation Guide

Download your Installation Guide for this product below:

Request a sample
