200, 125 & 75mm Protection Rails

  • Fire Tested - Please see further details below
  • Hygienic easy clean rail
  • 3 widths available
  • Choice of PVCu fixing clips, solid timber core or aluminium core
  • External corners & stop ends, also available in rubber and stainless steel
  • 48 Colour Choices
  • Heavy duty rubber or steel accessories option
  • Fit flat back to walls or on 60 mm Cream PVCu spacers

200, 125, 75 mm wide
3.5 m lengths
30 mm projection
(88 mm projection for standoff version)

On-Trend Range

Premier Colour Range

Ancillary Colour Range

Extruded PVCu rail & accessories
Fixing/jointing clips are fabricated.

Stippled

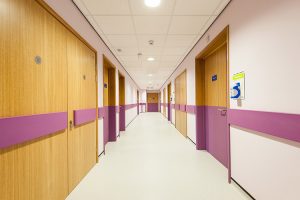

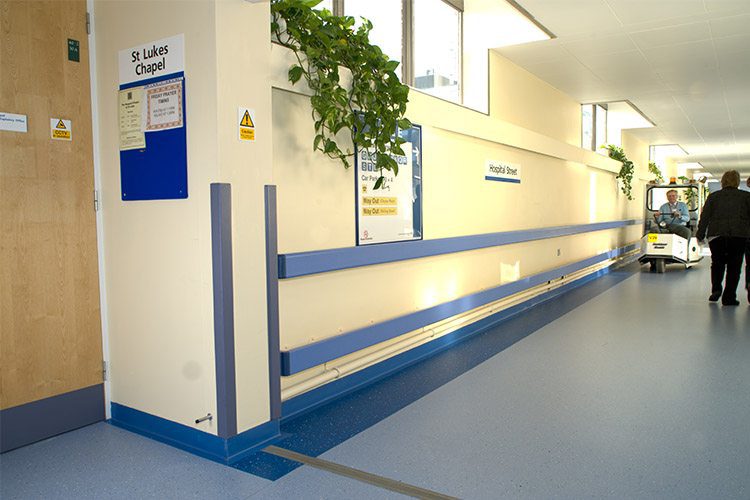

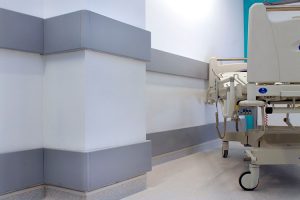

Protect against damage to walls and corners with the original protection rail from Yeoman Shield, now available with a whole host of customisable options.

The protection rail can be installed flat back to the wall or as a “stand off” option, fixed on 60 mm standard spacers.

With a choice of cores and accessories, the protection rail is ultimately suitable for all areas – no matter how persistent and hard the assailing objects are.

Our protection rails are therefore suitable for a range of industries and applications, including:

  • Retail
  • Healthcare
  • Leisure
  • Schools
  • Logistics
  • Manufacturing
  • Warehousing

Simply select your choice of core – timber or aluminium – and your preferred external corners and stop ends. Our protection rails are also available in your choice of 48 standard colours.


Yeoman Shield Fire Test Information

Textured Extruded Protection Products – B, s2, d0

BS EN 13823: 2010 + A1: 2014.

BS EN ISO 11925 – 2: 2010.

BS EN 13501 – 1: 2007  + A1: 2009.

BS 476: Part 7: 1997 – The surface spread of flame products – Class 1Y (Class 1 is the best classification in this test).

BS 476: Part 6: 1989 + A1: 2009 – Fire propagation for products – Class O – As defined in the latest building regulations, approved document B (Fire Safety).

Installation Guide

Download your Installation Guide for this product below:

Request a sample
